Cisco NX-OS is a Linux-based network switch operating system. As a Linux system that provides direct shell access over SSH with sudo permissions, Sandfly is able to scan it.

Setup

User Setup

Sandfly requires a user that logs in directly to the shell and is able to use sudo to elevate privileges. NX-OS natively supports this with the user role set to network-admin (puts the user in a group with sudo permission) and shelltype set to bash (user logs in to shell instead of Cisco CLI).

Create a sandfly user from configuration mode:

nxos(config)# username sandfly password EnterSecurePasswordHere1234 role network-admin
nxos(config)# username sandfly shelltype bash
user sandfly exists

Sandfly strongly recommends SSH keys for authentication to minimize the risk of attackers stealing credentials:

nxos(config)# username sandfly sshkey ssh-ed25519 AAAAC3...spn

At this point, the user named "sandfly" is able to SSH to the switch, will be given a shell prompt, and is able to use sudo.

Sandfly Setup

Add the switch to Sandfly using the normal add host process, with one important difference: by default, Sandfly nodes are configured to use the user's home directory as the working directory for scanning, and if that is not writable, to fall back to /dev/shm. NX-OS does not have enough disk space allocated to the home directories, and the /dev/shm directory is mounted "noexec". For scanning NX-OS, we recommend using the /volatile directory as the working directory.

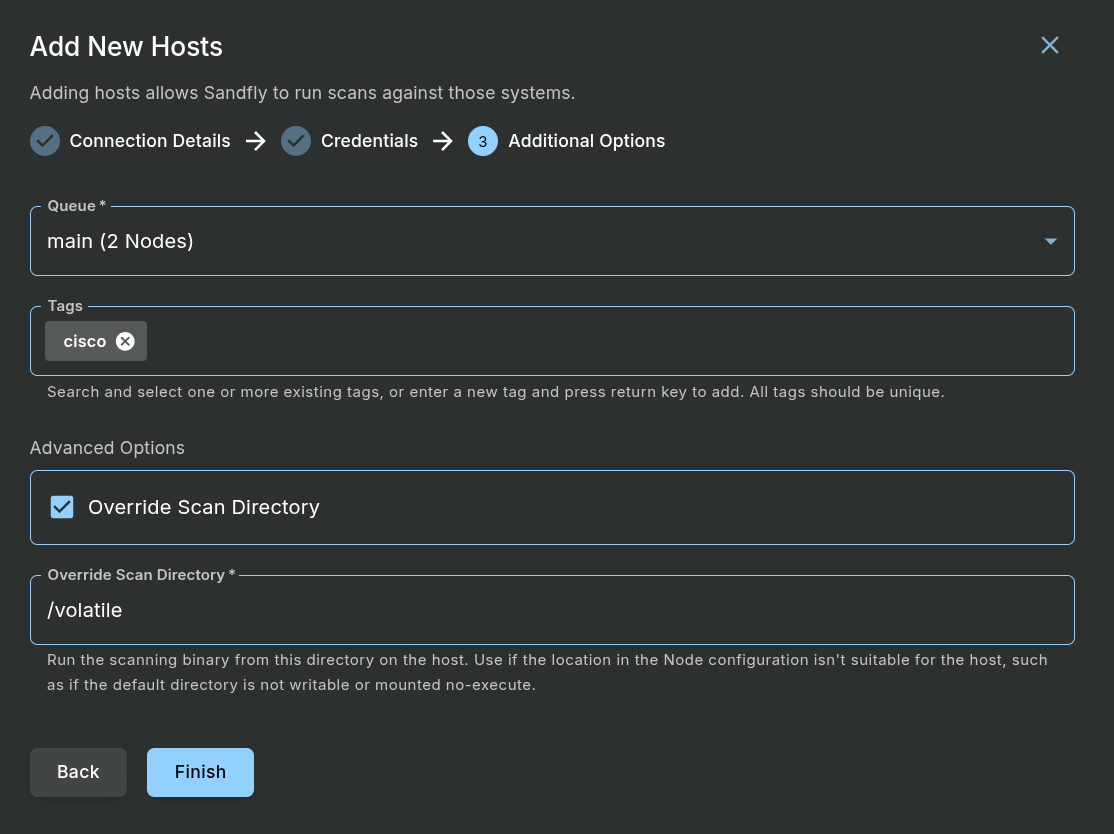

You may override the default working directory on a per-host basis. When adding the NX-OS host, enable the "Override Scan Directory" option (located on Step 3 of the Add New Hosts form) and enter /volatile.

Alternatively, if you have a dedicated Sandfly node for connecting to your NX-OS switches, you can configure the node's default directory to /volatile. See the Default and Fallback Directories section of the Special Case Node Configurations documentation for details on how to edit the node's configuration.
